Code: TOLEDO98-GRA-MO
Bar Code: 5031599039619
Product Size: 40cm length. 40cm width. 98cm height.
Material: Castiron
Packaging Information: Mail order brown carton
Packing Size: 45cm length. 45cm width. 43.5cm height.
Country of origin: China

USER INSTRUCTIONS OUTDOORS
Please read the following instructions and recommendations and use CAUTION at all times for the safe en-
joyment of a real patio fire. Please keep these instructions in a safe place so you can read them again from
time to time.
¡¤ ALWAYS FOLLOW THE USER INSTRUCTIONS. Failure to do so may result in personal accidents or fires
spreading to property. Please remember, you are dealing with a real fire.
¡¤ PLACE your real patio fire on a FLAT surface; you should NOT place on a sloping surface where the fire
might tip over.
¡¤ This should be a NON-FLAMMABLE surface such as stone, gravel or bricks. Do not place on grass which
may turn brown. Do not place on wood which may turn brown or catch fire. DO NOT PLACE ON DECKING
which may turn brown or catch fire.
Protect wooden decking with a Gardeco FLOOR PROTECTION or use bricks or concrete slabs.
¡¤ DO NOT place your fire near bushes or plants or under trees; the heat will damage the leaves and is a fire
risk.
¡¤ DO NOT place your real fire under an awning; it will burn or melt.
¡¤ DO NOT place your real fire near garden furniture, especially made of fabric or woven plastic, which may
melt or catch fire. We recommend at least one metre distance.
¡¤ DO NOT make a real fire inside a conservatory or summer house or shed; real fires are designed to be
outside, and fumes emanating from the fire made with wood, coal or charcoal are toxic and dangerous to
health. You can use your patio fire indoors ONLY WHEN USING WITH THE CHIM BURNER AND BIO-
ETHANOL FUEL.
¡¤ DO NOT touch the real fire when burning; the surface is hot and you will burn your fingers; protect your
hands with a Gardeco FIRE GLOVE. We recommend that gloves are used at all times.
¡¤ DO NOT allow children, especially small children, near the fire. Do not allow pets near the fire.
¡¤ DO NOT allow children to play or run around the fire. It is not a game. Use a Gardeco CHIMENEA GUARD
to prevent small children coming close to the fire.
¡¤ DO NOT over fuel the fire. If flames are coming out of the top of the chimenea, then the fire is too
large.
¡¤ DO NOT PANIC if fuel falls out of the fire or for any reason flames spread out from the patio fire,
simply extinguish spreading flames with earth or sand or with water immediately.
DO NOT throw water on a real fire other than in an emergency.
¡¤ DO NOT use petrol, paraffin or similar substances as fire lighters or as a fuel. The best method is balled
newspaper and kindling, such as Gardeco OCOTE sticks. The best fuel is wood or charcoal. Remove the
charcoal grill when not burning charcoal.
¡¤ NEVER LEAVE A BURNING REAL PATIO FIRE UNATTENDED. Failure to do so may result in the fire
spreading out of control and result in damage or destruction of property. Please ensure the fire is
completely out before leaving the real patio fire unattended.
¡¤ DO NOT attempt to move a real patio fire while the fire is burning.
¡¤ We advise against using a real patio fire when it is windy or in the case of droughts. Strong wind may tip
the chimenea over which is a fire risk. Wind may also disperse burning material, which is a fire risk, partic
ularly if the environment is dry as in the case of a drought.
¡¤ Please be a good neighbour and be reasonable in the use of your patio fire, keep smoke and noise to a mini
mum.
SPECIFIC INSTRUCTIONS FOR YOUR CHIMENEA
¡¤ Use your chimenea or real patio fire for warmth and cooking, Chimeneas are beautiful to look at and can be used
as garden decorations.
¡¤ You may use dry wood logs, charcoal, coal or briquettes for fuel. Chimeneas and other patio fires can be
used to burn garden refuse such as leaves or branches. DO NOT throw fuel into a chimenea. Wet logs will
create a lot of smoke.
¡¤ The environmental friendly fuel is wood or charcoal which is carbon neutral.
¡¤ When cooking use locally made charcoal from renewable forests with minimal transport cost. Gardeco Wyre
Forest Charcoal is made in the Wyre Forest in the UK West Midlands following to ancient rural methods.
¡¤ Gardeco CHIM LOGS, which are made from environmentally friendly recycled sawdust and burn slowly with
little smoke.
¡¤ To start a fire use domestic fire lighters or balled newspaper and kindling.
¡¤ The best and most natural way to start the fire is Gardeco Ocote fire lighters. Ocote is a high resin
content pinewood from Central America, one or two sticks are enough to light a fire.
¡¤ For a fire without firelighters or kindling, use the smokeless Gardeco FIRE LOG, a wax impregnated
sawdust briquette, wrapped in a paper. Just light both ends of the paper and the log will burn for about
2½ hours. You cannot use Gardeco Fire Logs for cooking.
¡¤ Protect hands with Gardeco FIRE GLOVES when adding fuel. The more fuel is added, the more intense the
heat, the larger the flames. Do not over-fuel the fire.
¡¤ Use a Gardeco POKER to reposition logs inside the patio fire.
¡¤ If the fire is slow to start, more air will help, use a Gardeco BELLOWS to blow air into a slow fire.
¡¤ No one wants smoke to spoil their party, a Gardeco EXTENSION CHIMNEY raises smoke above the heads
of standing people and increases the draw enabling the fire to burn more efficiently.
¡¤ Safety is our main concern, so please use a CHIMENEA GUARD to keep small fingers well away from the fire.
¡¤ Cast iron chimeneas are very heavy. At least two people must carry one chimenea. Failure to do so may
result in back injury or accidents. When moving the chimenea, make sure each person is holding it by the
side handle and the top of the funnel- do not hold it in just one place.
¡¤ Wood fuels burn by drawing air from above whilst charcoal and coal also need air from underneath. Some products are
supplied with a charcoal grill and some have a BBQ grill. If you are using wood alone, you do not need a charcoal grill. If
you are not cooking on your chimenea, you may decide to remove the BBQ grill if there is one in your chimenea.
¡¤ Please remove the lid prior to starting the fire. Leaving the lid on the chimenea will prevent the smoke from pulling up
the chimney and the smoke will come out of the mouth instead. Please do not place the lid back on the chimenea once
the fire is burning. This would increase the fire temperature and be a fire risk.
MAINTENANCE INSTRUCTIONS FOR YOUR CHIMENEA
¡¤ Although your chimenea or patio fire is coated with heat-resistant paint, the PAINT WILL BURN OFF -
this may happen after one use only. The bigger the fire, the faster the paint will burn off.
¡¤ A chimenea or patio fire can be re-painted with high temperature resistant paint available from Gardeco
or local DIY store.
¡¤ Cast iron and steel corrode quickly in wet conditions and WILL RUST. Rusting is a natural phenomenon that
cannot be prevented. It is not a product defect therefore Gardeco offer no guarantees against rusting.
Corrosion may occur after one use only.
¡¤ A rusty chimenea is still fit for purpose and can continue to be used. No refunds or replacements will be
given for rusty chimeneas.
¡¤ Rust runs may mark flooring, slabs, and patios, so if you are worried abut marking, protect your flooring.
¡¤ To reduce the likelihood of rusting, wipe the whole surface of the product with oil after each use. Use a
rag or brush to that effect.
¡¤ Bring inside or protect with a weatherproof chimenea cover. Gardeco sell many sizes of covers in various
quality grades. If the cover traps dampness underneath it, the chimenea may still go rusty. Ideally, bring
inside for the winter. Careful, never put a cover on a chimenea while still warm: it will melt.
¡¤ To maintain the finish, clean the surface with a soft cloth. Do not use a wire brush. Slight wear and tear
scratches may appear with normal use.
COOKING ON A CHIMENEA OR FIRE BOWL OR BBQ
Special care and attention is necessary when cooking on a chimenea or fire bowl to avoid contamination by
smoke or soot. All cooking accessories MUST BE THOROUGHLY CLEANED BEFORE USE.
¡¤ BBQ grills and accessories are coated with vegetable oil during manufacture but may have gathered dirt
and dust therefore must be thoroughly washed in hot water and detergent, check all dirt is removed.
¡¤ After cleaning and drying, cooking accessories are best lightly coated with vegetable cooking oil before
use. After use, they must washed clean with hot water and detergent and coated with vegetable cooking
oil before storing. NEVER USE MINERAL OIL.
¡¤ If you do not oil cooking accessories they will rust, this could happen after first use. If you wash cooking
accessories with water and don‛t coat with cooking oil rust can occur in a matter of hours.
¡¤ After use the surfaces of the cooking accessories in direct contact with the fire will be covered in black
carbon soot. Soot can be washed off with hot water and household detergent or washing up liquid. Be care
ful because black soot residues will mark surfaces, tea towels or washing up cloths. All soot must be re
moved before oiling and storage.
FUEL
Do not cook on flames, if you do this there will be a soot residue on the food, which is unhealthy. Be aware
wood is often treated with preservatives which are toxic and can contaminate the food.
.¡¤ When cooking use dry wood or charcoal, and allow the wood gas to burn off as flames to leave hot glowing
embers, cook on the embers.
¡¤ If meat releases fat onto the hot embers which makes a flame, move the meat away from the flame.
¡¤ Keep a spray bottle of water handy to squirt on any flames.
¡¤ Used a cast iron pan to grill meat rather than placing directly on a grill.
¡¤ Alternatively wrap food in aluminium foil to prevent contamination.
FOOD HYGIENE AND SAFETY
When cooking outdoors take care food is kept in hygienic conditions.
¡¤ DO NOT leave meats in the sun or outside in hot weather, keep cool and covered with a clean cloth.
¡¤ DO NOT leave butter in the sun or uncovered.
¡¤ Keep meat and vegetables in separate dishes to avoid cross contamination with fluids.
¡¤ Only bring food out into the garden before cooking and it should be consumed after cooking as soon as pos
sible. Food should be eaten while hot, immediately after coming out of the fire. Dispose of any cooked food
not eaten.
¡¤ MAKE SURE meat is thoroughly cooked.
¡¤ When cooking accessories are taken out of the fire, they are hot and need to be put onto a hard non-flam
mable surface, so the contents of the cooking accessory can be removed.
¡¤ DO NOT place the cooking accessory on the patio, grass, earth or directly on the ground.
¡¤ DO NOT put hot cooking accessories directly onto wood, furniture, plates, crockery or plastic surface.
¡¤ Parts of the cooking accessories in direct contact with the fire may become covered with carbon soot.
Make sure you do not contaminate your food with soot.
¡¤ CAREFUL HOT! DO NOT TOUCH, steel and cast iron cooking accessories are very hot when taken out of
the fire, do not touch with your fingers, protect hands with Gardeco FIRE GLOVES.
¡¤ Cast iron cooking accessories can remain hot after use, so ALWAYS be very careful and cautious when han
dling cast iron cooking accessories.
¡¤ DO NOT allow children to handle any of the cooking accessories.
¡¤ NEVER leave a cooking accessory in the fire unattended. If you leave food in the fire, it will be burnt and
inedible.
HINTS AND TIPS
¡¤ Cast iron accessories should be pre-heated for best results.
¡¤ Always coat the inside with oil or butter of all accessories to prevent food sticking.
¡¤ Butter tastes better than oil for waffles and pancakes.
¡¤ A small brush is useful for oiling or buttering surfaces.
¡¤ A flat spatula is useful to release foods from the accessory.
WHICH COOKING ACCESSORIES SHOULD I USE?
Gardeco cooking accessories are specially designed for use in chimeneas, fire bowls, barbecues or outdoor fires.
The materials used are suitable for the greater intensity of outdoor fires, with long handles to ensure ease of
use without burning your hands. It is NOT ADVISABLE TO USE KITCHEN PANS OR POTS to cook on patio
fires. Kitchen pans may be designed for fires of less intensity and coated with plastic based non-stick materials
which may melt in patio fires. Gardeco cooking accessories are designed for cooking food on an open fire.
¡¤ The Gardeco COOKING IRON is perfect for burgers, sausages, vegetables; it is multi-purpose.
¡¤ The Gardeco TOASTIE IRON makes tasty sandwich toasties.
¡¤ The Gardeco FRYING PAN is great for steaks, bacon, frying tomatoes and fried eggs.
¡¤ The Gardeco POP CORN POPPER is great for entertaining children, who love watching popping corn.
¡¤ The Gardeco PANCAKE PAN for making pancakes.
¡¤ The Gardeco WAFFLE IRON for making waffles.
¡¤ The Gardeco CHESTNUT PAN for roasting tasty chestnuts and can be used for cooking food wrapped in
aluminium foil.
¡¤ The Gardeco TOASTING FORK makes delicious toast and marshmallows, or to warm rolls or croissants.
¡¤ The Gardeco PIZZA STONE is great for making pizzas the Italian way.
¡¤ Use the Gardeco removable CHIM BBQ GRILL on clay chimeneas, for cooking food on BQQ grill

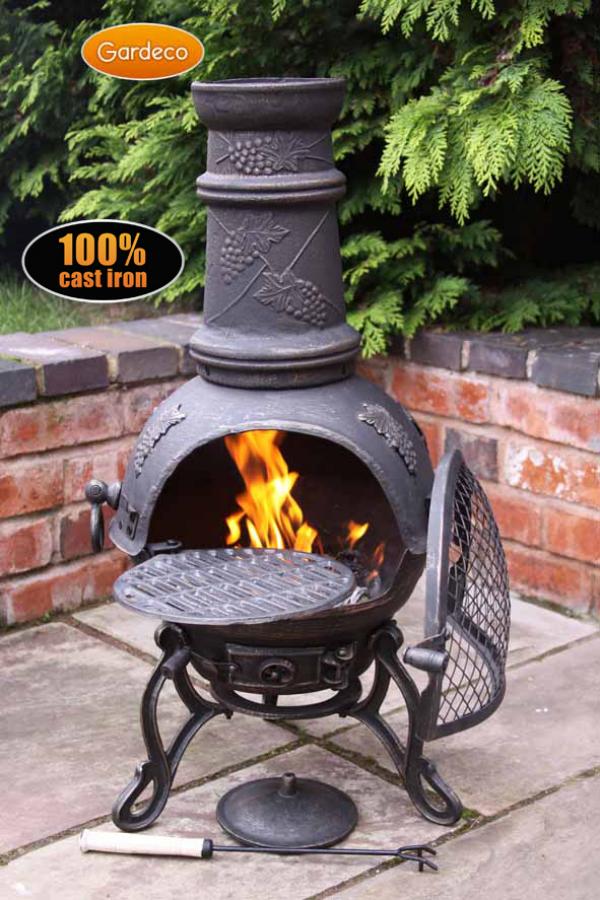

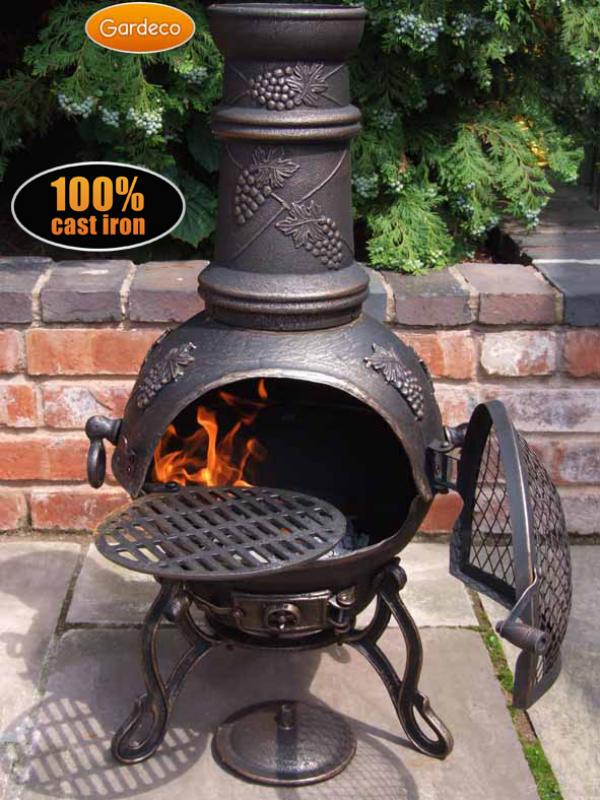

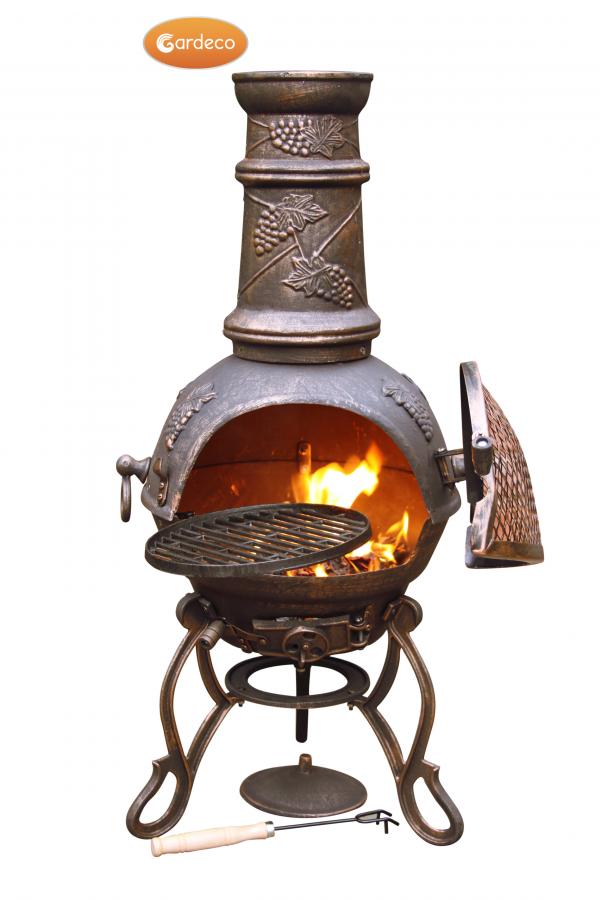

¡¤ Your cast iron or steel chimenea may already be equipped with a SWIVELLING BBQ GRILL, made of
either chromed steel or cast iron for barbecuing on your chimenea. These can also now be purchased
separately from the chimenea.
¡¤ The Gardeco SWIVELLING HOT PLATES AND FRYING PANS can be fitted in place of the BBQ grill on
most steel
MORE RECOMMENDATIONS
All cooking accessories, whether supplied with the product or separately must be washed before first use to
remove any dirt due to manufacture or packaging operations. We recommend you wash them before use every
time subsequently, even if they were put away clean.
All cast iron cooking accessories including BBQ grills and hot plates are coated with vegetable oil to stop rusting
when you first receive them. After use, all cooking accessories need to be cleaned in soapy water to remove
soot and cooking residue. Dry them well after cleaning and immediately coat them with vegetable oil before
putting away. Failure to coat with vegetable oil will mean the accessory will start rusting. NEVER use mineral oil
which is harmful to human health. For cooking accessories purchased separately from this product, follow the
cooking instructions supplied with the packaging.
If your chimenea is equipped with a swivelling cast iron BBQ grill, remember to remove and wash it thoroughly
and coat it with vegetable oil before and after use. Put food directly onto the BBQ grill, either pre-heated or
not. For pizzas, use the pizza stone. Use the multi-purpose tool provided to swivel the BBQ grill in and out. Nev-
er touch the BBQ grill with your hands while hot. A cast iron BBQ grill will remain hot a long time after use,
even if taken out of the chimenea.

DO NOT FULLY TIGHTEN THE BOLTS BEFORE ASSEMBLING ALL THE PARTS
Assembly is easier with two people, one to hold the parts and a second person to insert the fixings.
Tools required: screwdriver and socket wrench - spanner and tong supplied
1. Assemble Legs (F) to Bottom bowl (E2) with the six M6 X 25 Bolts (T2), Washers (U), Lock Washers (X)
and Nuts (V). Do not tighten the bolts, then assemble Legs (F) to Leg Ring (J) with the three M6 X 30
Bolts (T1), Washers (U), Lock Washers (X) and Nuts (V).
2. Assemble Top Bowl (E1) to Bottom Bowl (E2) with three Connection Plate (O), six M6 X 20 Bolts (T3),
Washers (U), Lock Washers (X) and Nuts (V).
3. Assemble Flue (C) to Top Bowl (E1) with the three M6 X 25 Bolts (T2), Washers (U), Lock Washers (X) and
Nuts (V).
4. Assemble Hook (M) to the left of the Bottom Bowl (E2) with preassembled Bolts and Nuts, then assemble
Air Vent (G) to the right of the Bottom Bowl (E2) with preassembled Bolts and Nuts.
5. Assemble Handle (K) to Top Bowl (E1) with preassembled Washer, Lock Washer and Nut .
6. Attach Hook (M) on the left of Top bowl (E1) with preassembled Bolts and Nuts , then assemble Mesh Door
(D) to the right of Top Bowl (E1) with preassembled Bolts, Washers, Lock Washers and Nuts.
7. Assemble the BBQ Grill Hinge Bracket (L) to the inside left of the Bottom Bowl with preassembled Bolts,
Washers, Lock Washers and Nuts- do not tighten the fixings.
8. Check the Swing out BBQ Grill (I) is level, then tighten Grill Hinge Bracket (L) fixings, then put Swing out
Grill (I) on Grill Bracket (L) and insert Pin (N).
9. Insert the Round Grate (H) into Bottom Bowl (E1).
10. Put Flue Grill (B) and Rain Lid (A) on Flue(C ).
Now check and tighten all fixings, assembly is complete.
DO NOT OVER TIGHTEN THE FIXINGS
